Low
pressure UV Lamps for surface cleaning and TOC reduction
Our
Low pressure UV Lamps are low pressure Mercury
Vapor lamps that are fabricated from a pure
grade of quartz tube with specially fabricated
tungsten filament. Low pressure UV Lamps emits
184.9 nm and 253.7nm abundantly.
They decompose organic impurities to CO2 and H2O.
It also reforms chemical characteristics of surface
from hydrophobic to hydrophilic. Contact angle of
hydrophilic surface will be reduced down to 5 degree
UVSMT work directly with end user and machinery OEMs
for medium pressure Mercury UV lamps.
Applications of Low pressure UV Lamps
1. Surface cleaning and Modifications
of LCD, PDP, OLED, Wafer
2. Optical Glass.
3. Acrylic, PP, PE and many engineering Plastics
4. TOC reduction in ultra high Pure Water.

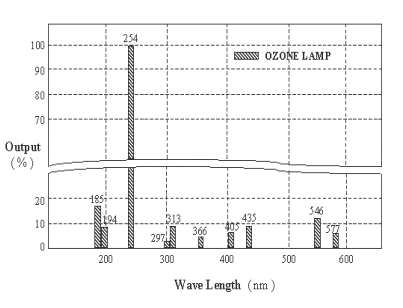

<Spectral power distribution
of TOC Lamp>
Specifications of Low pressure UV Lamps
Cat.No.
Lamp Watt
Lamp Length
Arc Length
Lamp Volt
Lamp Current
W
mm
mm
V
mA
CR040U
40
275
200
95
430
CR090U
90
530
453
130
800
CR130U
120
640
563
160
1450
CR200U
200
820
750
180
1450
CR110U
110
300
227
160
800
CR200M
200
540
468
200
1400
OLH040S
40
770
840
105
430
OLH080S
80
980
1050
110
800
OLH120S
120
980
1050
110
1500
Other specifications for surface
cleaning and modification UV lamps are available
upon request to help@uvsmt.com
